Introduction
Portable belt conveyors were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines.
Advantages and Features
1. Light weight, one operator can move it easily.
2. Lifting height can be adjusted according to your need.
3. Belt conveyor system provides gentle handling and higher capacity than the same size screw conveyor.
4. With wheels and can be moved to anywhere to save equipment number.
5. Easier for bags or bulk material stacking in warehouse to save your labor cost.

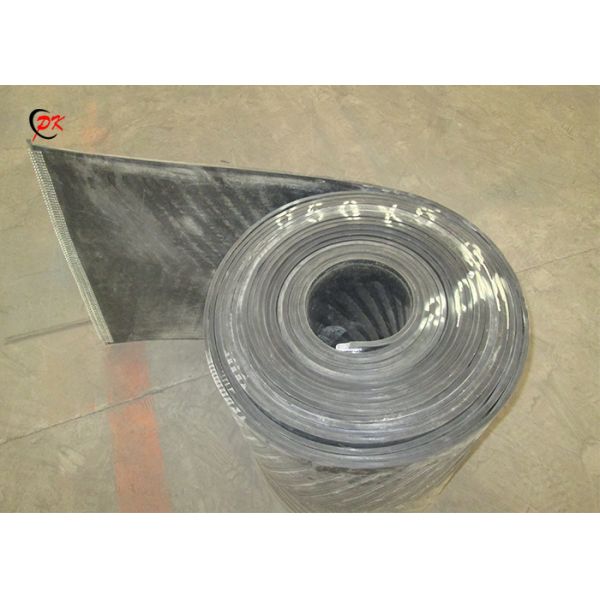

6. Adopt chevron pattern conveyor belt to increase the maximum conveyor angle.
7. The conveyor length can be customized according to your requirement.
Technical Parameter
| Model | Belt Width (mm) | Length (m) | Belt Speed (m/s) | Lifting Height (m) | Conveyor Angle (degree) | Capacity (m3/h) |
| DY50 | 500 | 5-20 | 0.8-1.6 | Adjustable | 15-26 | 50-140 |
| DY65 | 650 | 5-20 | 100-250 |
| DY80 | 800 | 5-20 | 170-350 |
| DY100 | 1000 | 5-20 | 270-550 |
Note: All the parameters are for reference only, we can design and manufacture as per your requirements.
Selection Conditions
| For the bulk material |
| ♦ Material to be processed: | ♦Max. Granule size of material: mm |
| ♦ Bulk Density: t/m3 | ♦ Handling capacity: t/h |
| ♦ Material temperature: ºC; | ♦ Conveyor length: m |
| ♦ Water content: % | ♦ The conveyor angle is adjustable or not: (Yes or No) |
| ♦ Material is corrosive or not: (Yes or No) | ♦ Max. Lifting height: m |
| ♦ Material is sticky or not: (Yes or No) | ♦ Working power supply: 3 Ph. V Hz |
| |
| For the bagged / box material |
| ♦ Weight of full-load bag / box:kg | ♦ The conveyor angle is adjustable or not: (Yes or No) |
| ♦ Size of the full-load bag/box(L*W*H): mm | ♦ Max. Lifting height: m |
| ♦ Numbers of conveyed bags/boxes per hour: | ♦ Working power supply: 3 Ph. V Hz |
| ♦ Conveyor length: m | ♦ Quantity: sets |
